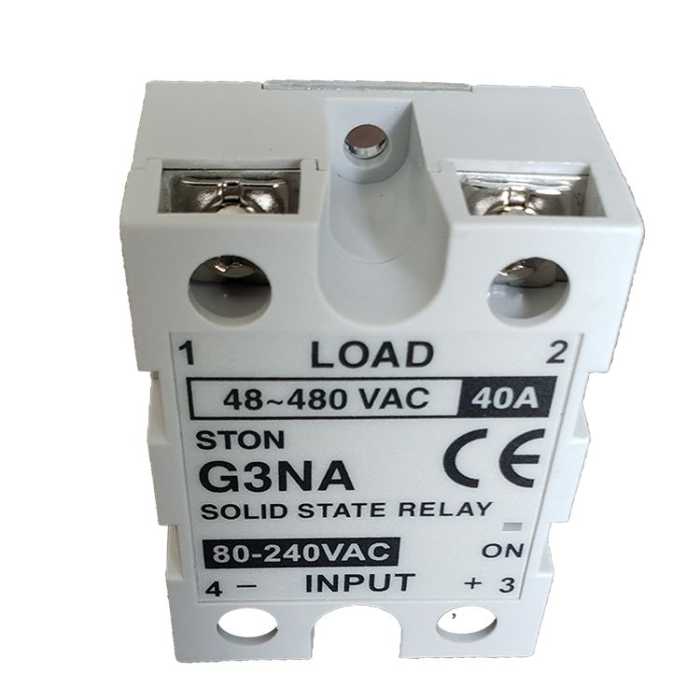

Relay for Misting Pump
- Operating Voltage Range : D3: DC3-7V D: DC5~32V
- Rated trigger capacity: Under 0.2VA
- Rated frequency : AC: 50~60Hz
- Minima ON/OFF voltage : ON: D3:2.8V/ D: 5V/A:70V OFF: D3:1.2V/ D: 1.8V/A:18V
- Rated output current : 12A / 25A / 40A / 50A / 75A/100A P.F.=1
- Output control mode : Zero cross trigger (Can order Non-zero cross trigger)
- Reset time : Less than 0.1s
- Output leakage : About 10 mA
- Dielectric strength : 2500VAC 50/60Hz 1 Min
- Output arrangement : Out 1 form a
- Max. temperature rise : 65 deg.
- Ambient temperature : -20℃ to +80℃ But no ice
- Ambient humidity : Max. 85% RH
- Housing Material : PBT
- Input has LED to display ON /OFFstate
