Product Specifications
PUMPS

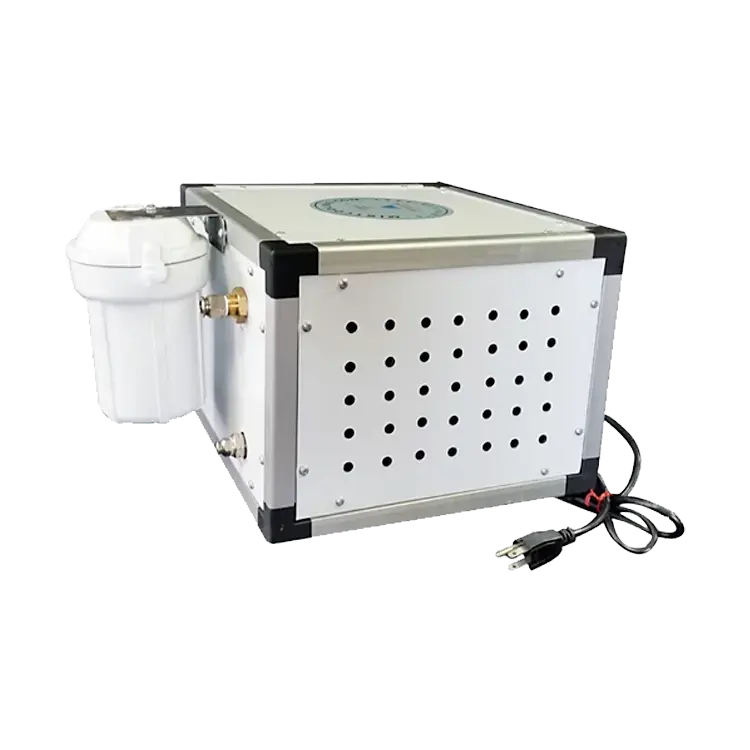

High Pressure Misting Pump -1500 PSI - .15 GPM
- Max Pressure (psi) : 1500
- Maximum number of nozzles: 20
- Flow rate (gpm) : 0.15
- Filtration : 5 Micron
- Voltage : 110 V AC
- Full load Amps : 1.38
- RPM : 1600
- HP : 0.25
- Pump Inlet : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch : Yes
- By-pass : Yes
- Motor type : Enclosed
- Noise level : 60-70 DB
- Oil Less : Yes
- Recommended operating Temp. : 33⁰- 140⁰F
- Dimensions (inch) : 15.5 x 14 x 10
- Weight (lbs.) : 17
High Pressure Misting Pump -1500 PSI - .30 GPM
- Max Pressure (psi) : 1500
- Maximum number of nozzles : 40
- Flow rate (gpm) : 0.3
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 2.15
- RPM : 1820
- HP : 0.25
- Pump Inlet : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch : Yes
- By-pass : Yes
- Motor type : Enclosed
- Noise level : 60-70 DB
- Oil Less : Yes
- Recommended operating Temp. : 33⁰- 140⁰ F
- Dimensions (inch) : 15.5 x 14 x 10
- Weight (lbs.) : 17

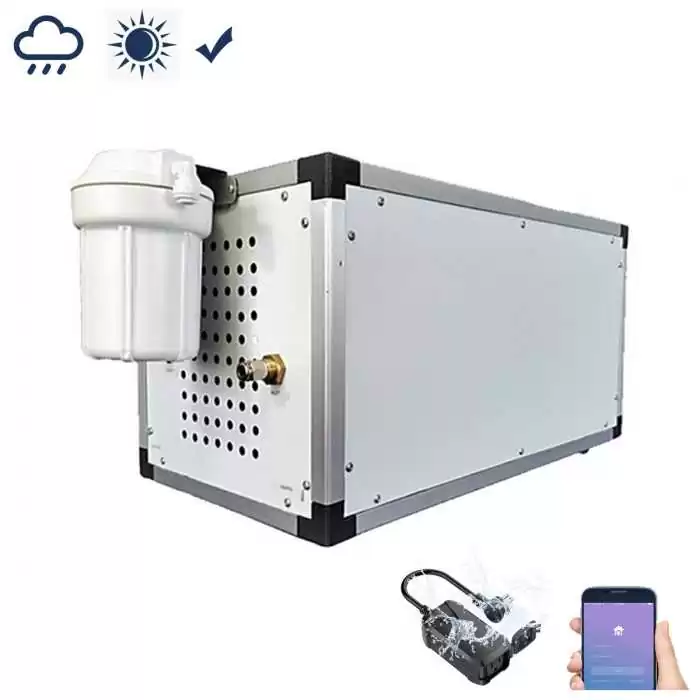

High Pressure Misting Pump -1500 PSI - 0.5 GPM
- Maximum number of nozzles : 45
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 5.8
- RPM : 1750
- HP : 0.5
- Pump Inlet : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 52
High Pressure Misting Pump -1500 PSI - 1 GPM
- Maximum number of nozzles : 80
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 9.2
- RPM : 1745
- HP : 1
- Pump Inlet : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
High Pressure Misting Pump -1500 PSI - 2 GPM
- Maximum number of nozzles : 160
- Flow rate (gpm) : 2
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 16.5
- RPM : 1745
- HP : 2
- Pump Inlet : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 76
Fans
18 Inch Non Oscillating Fan - Wall Mount Fan
- Size: 18 inches
- Color: Black
- Mount Type: Wall mount
- CFM: 6300
- RPM: 1570
- Amps: 2.0
- Phase: 1
- HP: 1/10
- Speed: 3
- Dimensions: 23x22x10
18 Inch Oscillating Fan - Wall Mount Fan
- Size: 18 inches
- Color: Black
- Mount Type: Wall mount
- CFM: 6300
- RPM: 1570
- Amps: 2.0
- Phase: 1
- HP: 1/10
- Speed: 3
- Dimensions: 23x22x10

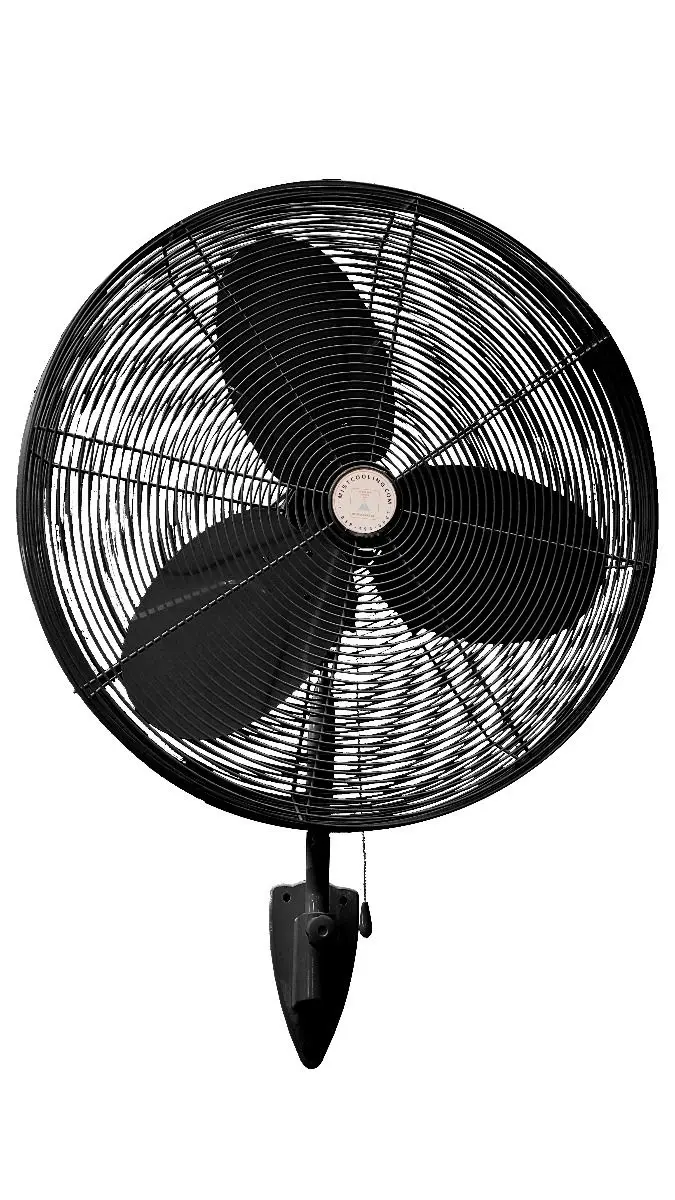

24 Inch Oscillating Fan - Wall Mount Fan
- Size: 24 inches
- Color: Black
- Mount Type: Wall mount
- CFM: 9100
- RPM: 1110
- Amps: 2.65
- Phase: 1
- HP: 1/4
- Speed: 3
- Dimensions: 42x28x7
30 Inch Oscillating Fan - Wall Mount Fan
- Size: 30 inches
- Color: Black
- CFM: 10400
- RPM: 1115
- Amps: 2.65
- Phase: 1
- HP: 1/4
- Speed: 3
- Dimensions: 46x34.5x7
Tubing

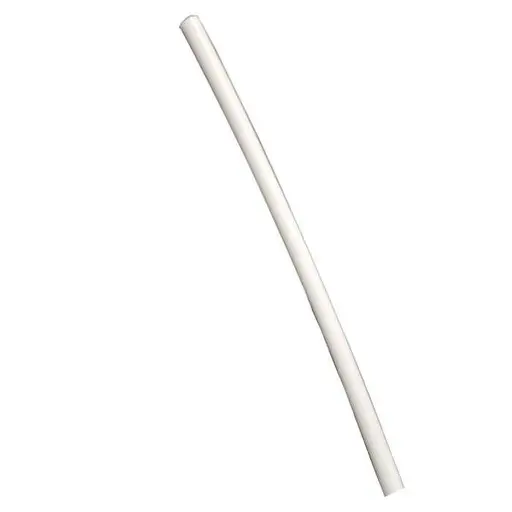

White

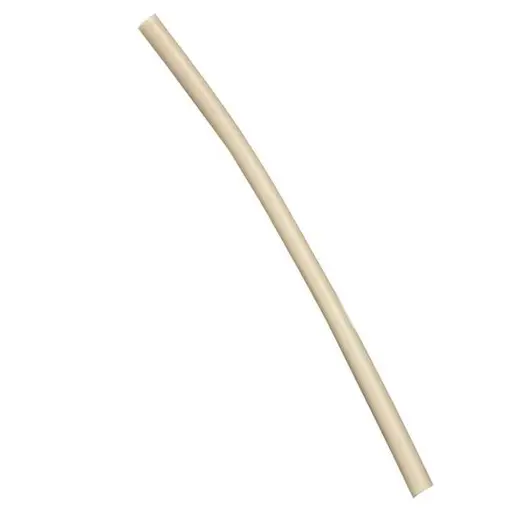

Beige

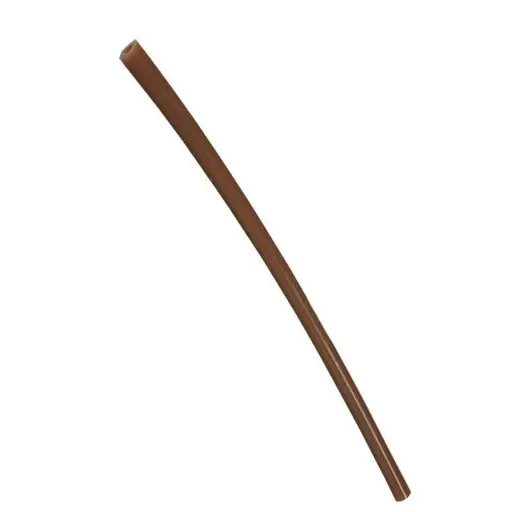

Dark Brown

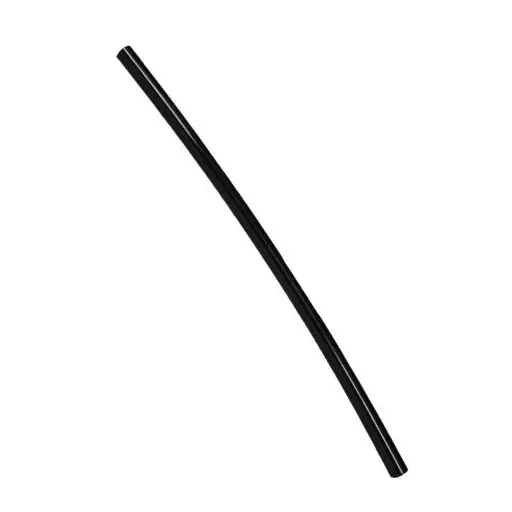

Black

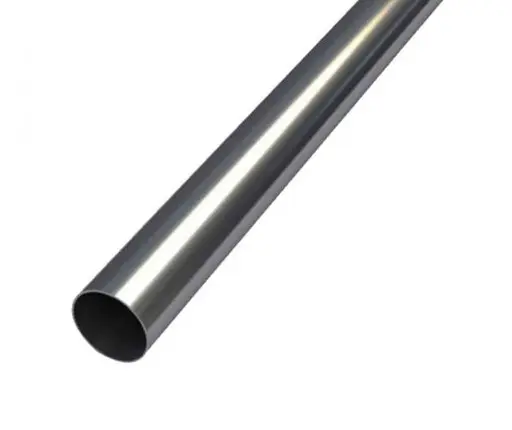

Stainless Steel
Nozzles

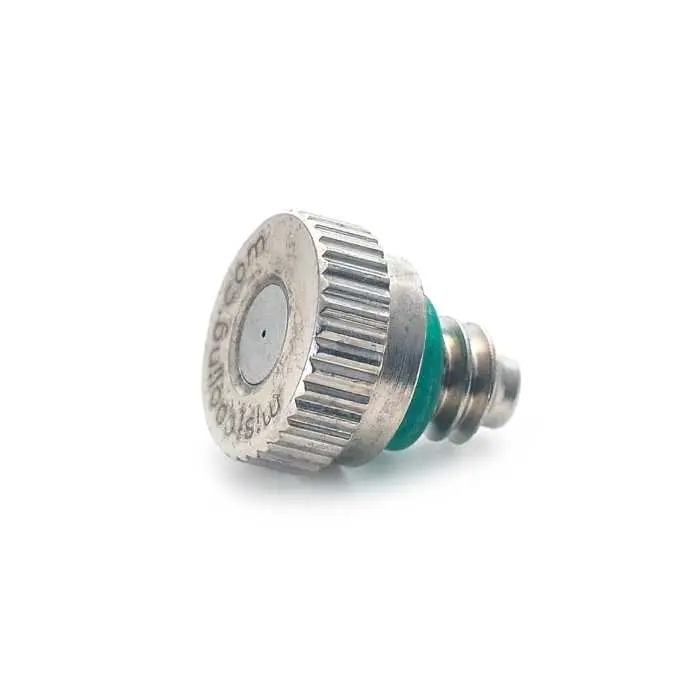

10/24 Thread 0.006 Orifice Mist Nozzle

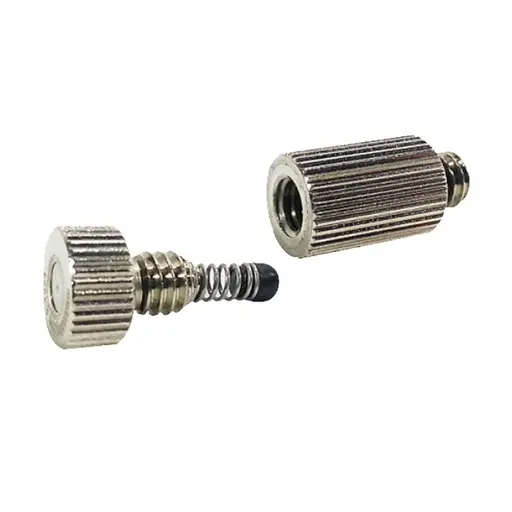

Anti-Drip Misting Nozzle

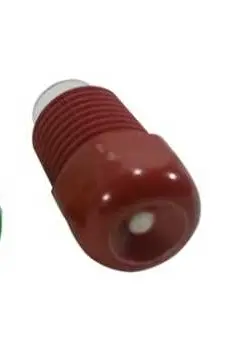

KBN Ceramic Nozzle - Low Flow
Fittings

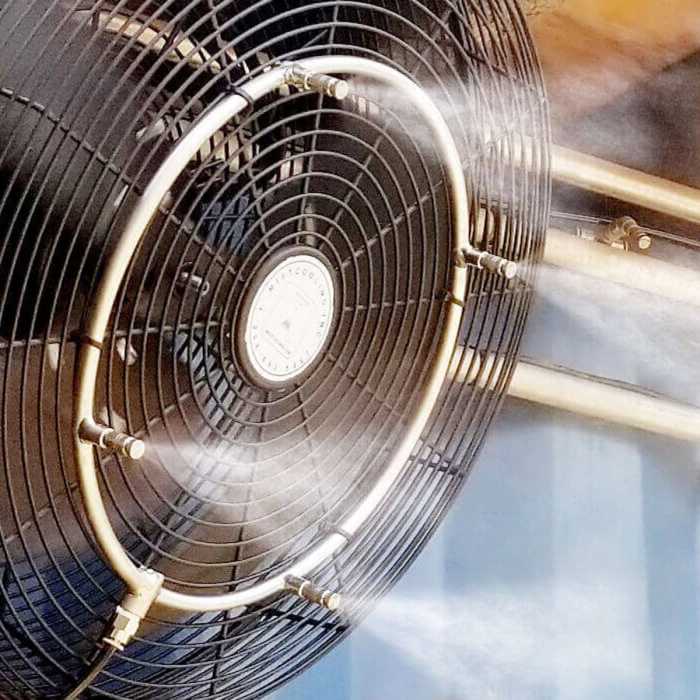

Misting Fan Ring
Nozzle Cluster

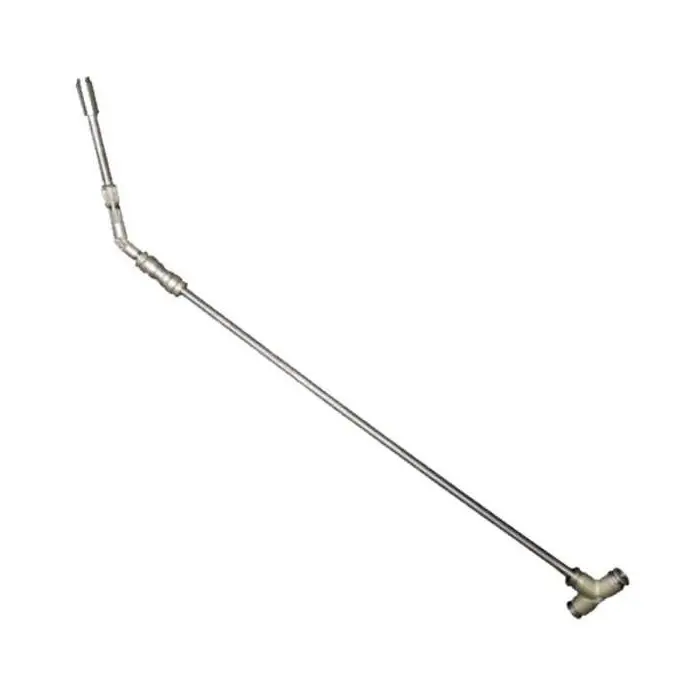

Riser Assembly

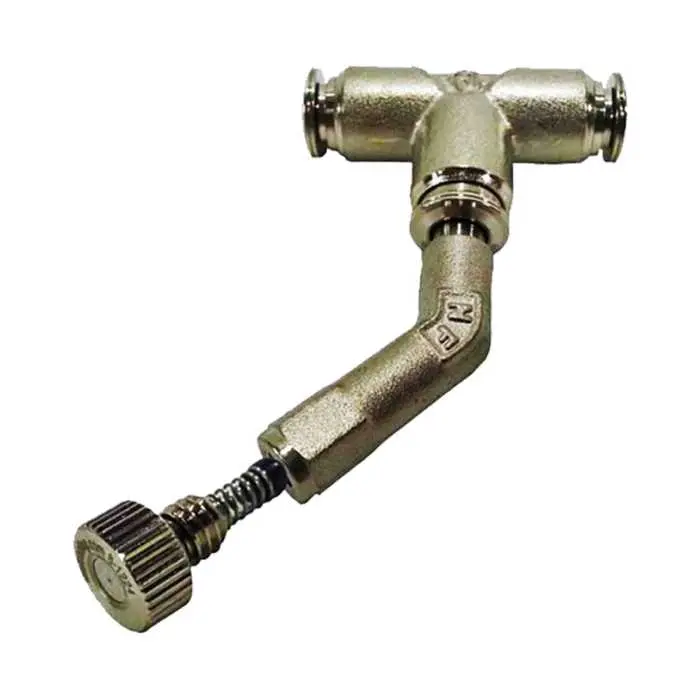

45 Degree Misting Tee

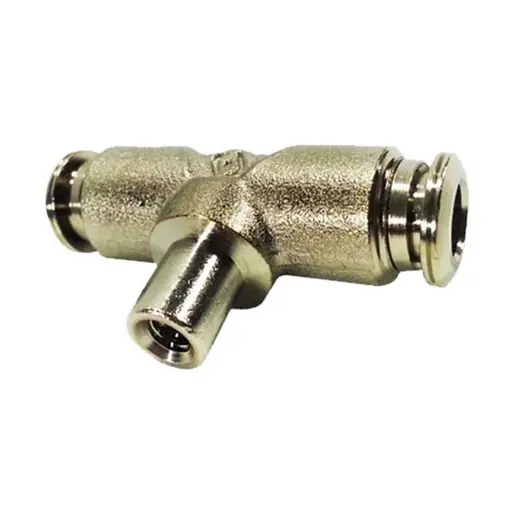

Misting Tee

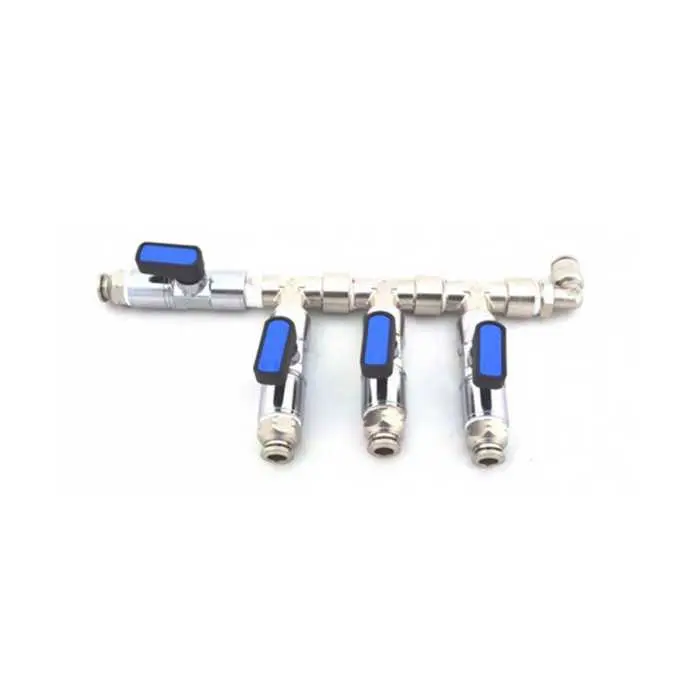

Manifold Assembly

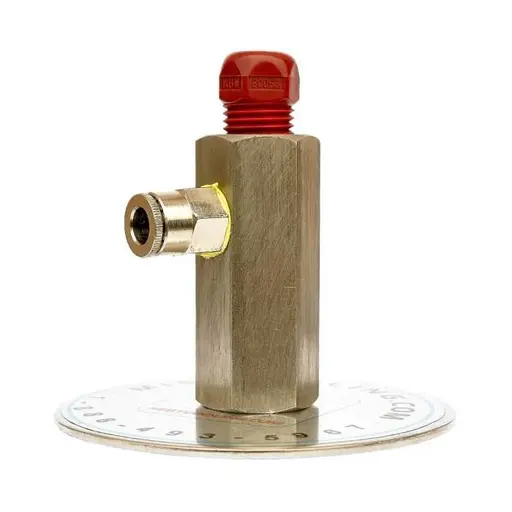

Center Mist Fan Hub

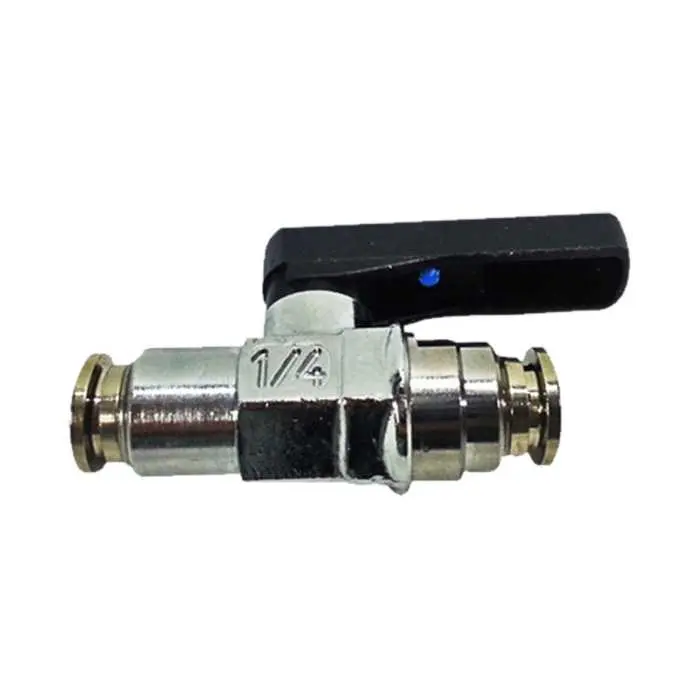

Inline Shut-Off Valve
Stainless Steel Mist Line
Mounting Clamps

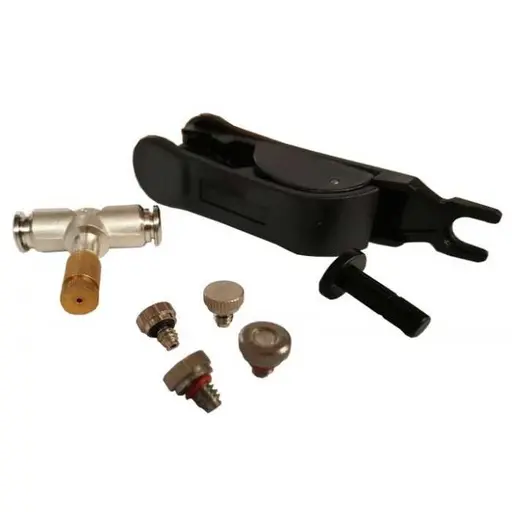

Accessory Kit
